Every labeled-edge mixed graph created using this library is an instance of a concrete class publicly derived, directly or indirectly, from this polymorphic template class. More...

#include <labeled_edge_mixed_graph.h>

Inheritance diagram for graphdom::labeled_edge_mixed_graph< VertexType, EdgeLabelType, EdgeLabellerType >:

[legend]

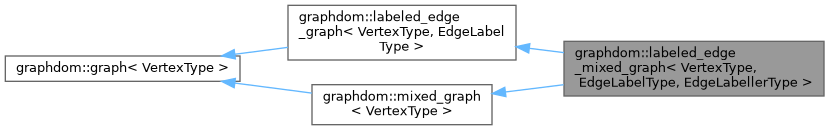

Collaboration diagram for graphdom::labeled_edge_mixed_graph< VertexType, EdgeLabelType, EdgeLabellerType >:

[legend]

Public Member Functions
	labeled_edge_mixed_graph (const EdgeLabellerType &el)
	labeled_edge_mixed_graph (EdgeLabellerType &&el)
	~labeled_edge_mixed_graph () override=default
	To be polymorphic, this class has a virtual destructor.
constexpr const EdgeLabellerType &	get_edges_labeller () const
void	insert_edge (const typename graph< VertexType >::vertex_const_handle &first_endpoint, const typename graph< VertexType >::vertex_const_handle &second_endpoint, edge_type et) final
virtual void	insert_edge (const typename graph< VertexType >::vertex_const_handle &first_endpoint, const typename graph< VertexType >::vertex_const_handle &second_endpoint, edge_type et, const EdgeLabelType &edge_label)=0
virtual void	insert_edge (const typename graph< VertexType >::vertex_const_handle &first_endpoint, const typename graph< VertexType >::vertex_const_handle &second_endpoint, edge_type et, EdgeLabelType &&edge_label)=0
Public Member Functions inherited from graphdom::labeled_edge_graph< VertexType, EdgeLabelType >
	~labeled_edge_graph () override=default
	To be polymorphic, this class has a virtual destructor.
virtual const EdgeLabelType &	get_edge_label (const typename graph< VertexType >::adj_list_const_iterator &) const =0
virtual EdgeLabelType &	get_edge_label (const typename graph< VertexType >::adj_list_const_iterator &)=0
Public Member Functions inherited from graphdom::graph< VertexType >
virtual	~graph ()=default
	To be polymorphic, this class has a virtual destructor.
virtual std::size_t	order () const =0
	Returns the order of *this, i.e. the number of vertices inside the graph.
virtual void	erase_vertex (const vertex_const_handle &vertex)=0
	Removes the vertex identified by `vertex`.
virtual adj_list_iterator	erase_edge (const adj_list_const_iterator &)=0
Public Member Functions inherited from graphdom::mixed_graph< VertexType >
	~mixed_graph () override=default
	To be polymorphic, this class has a virtual destructor.

Detailed Description

template<typename VertexType, typename EdgeLabelType, typename EdgeLabellerType = default_edge_labeller<VertexType,EdgeLabelType>>
class graphdom::labeled_edge_mixed_graph< VertexType, EdgeLabelType, EdgeLabellerType >

Every labeled-edge mixed graph created using this library is an instance of a concrete class publicly derived, directly or indirectly, from this polymorphic template class.

Creating an object of a user-defined class derived, directly or indirectly, from this one will cause undefined behavior.

Member Function Documentation

◆ insert_edge() [1/3]

template<typename VertexType, typename EdgeLabelType, typename EdgeLabellerType>

void graphdom::labeled_edge_mixed_graph< VertexType, EdgeLabelType, EdgeLabellerType >::insert_edge	(	const typename graph< VertexType >::vertex_const_handle &	first_endpoint,
		const typename graph< VertexType >::vertex_const_handle &	second_endpoint,
		edge_type	et )

finalvirtual

If et is equal to undirected then inserts in *this an undirected edge having first_endpoint and second_endpoint as endpoints, if *this doesn't already contain the same edge.
If et is equal to directed then inserts in *this a directed edge having first_endpoint as tail and second_endpoint as head, if *this doesn't already contain the same edge.
If and as soon as the insertion took place, the label of the inserted edge is equal to ( this->get_edges_labeller() )()

Parameters

first_endpoint	This handle must be valid and must identify a vertex belonging to *this, otherwise the insertion will cause undefined behavior.
second_endpoint	This handle must be valid and must identify a vertex belonging to *this, otherwise the insertion will cause undefined behavior.
et	The type of edge to insert

Implements graphdom::mixed_graph< VertexType >.

◆ insert_edge() [2/3]

template<typename VertexType, typename EdgeLabelType, typename EdgeLabellerType = default_edge_labeller<VertexType,EdgeLabelType>>

virtual void graphdom::labeled_edge_mixed_graph< VertexType, EdgeLabelType, EdgeLabellerType >::insert_edge	(	const typename graph< VertexType >::vertex_const_handle &	first_endpoint,
		const typename graph< VertexType >::vertex_const_handle &	second_endpoint,
		edge_type	et,
		const EdgeLabelType &	edge_label )

pure virtual

If et is equal to undirected then inserts in *this an undirected edge having first_endpoint and second_endpoint as endpoints, if *this doesn't already contain the same edge.
If et is equal to directed then inserts in *this a directed edge having first_endpoint as tail and second_endpoint as head, if *this doesn't already contain the same edge.
If and as soon as the insertion took place, the label of the inserted edge is equal to edge_label .

Parameters

first_endpoint	This handle must be valid and must identify a vertex belonging to *this, otherwise the insertion will cause undefined behavior.
second_endpoint	This handle must be valid and must identify a vertex belonging to *this, otherwise the insertion will cause undefined behavior.
et	The type of edge to insert
edge_label	If and as soon as the insertion took place, the label of the inserted edge is equal to `edge_label` .

◆ insert_edge() [3/3]

template<typename VertexType, typename EdgeLabelType, typename EdgeLabellerType = default_edge_labeller<VertexType,EdgeLabelType>>

virtual void graphdom::labeled_edge_mixed_graph< VertexType, EdgeLabelType, EdgeLabellerType >::insert_edge	(	const typename graph< VertexType >::vertex_const_handle &	first_endpoint,
		const typename graph< VertexType >::vertex_const_handle &	second_endpoint,
		edge_type	et,
		EdgeLabelType &&	edge_label )

pure virtual

If et is equal to undirected then inserts in *this an undirected edge having first_endpoint and second_endpoint as endpoints, if *this doesn't already contain the same edge.
If et is equal to directed then inserts in *this a directed edge having first_endpoint as tail and second_endpoint as head, if *this doesn't already contain the same edge.
If and as soon as the insertion took place, the label of the inserted edge is equal to edge_label .
If the insertion did not take place, edge_label remains unchanged.

Parameters

first_endpoint	This handle must be valid and must identify a vertex belonging to *this, otherwise the insertion will cause undefined behavior.
second_endpoint	This handle must be valid and must identify a vertex belonging to *this, otherwise the insertion will cause undefined behavior.
et	The type of edge to insert
edge_label	If and as soon as the insertion took place, the label of the inserted edge is equal to `edge_label` .

The documentation for this class was generated from the following files:

include/graphdom/labeled_edge_mixed_graph.h
include/graphdom/impl/labeled_edge_mixed_graph.h
