Every labeled-vertex set graph created using this library is an instance of a concrete class publicly derived, directly or indirectly, from this polymorphic template class. More...

#include <labeled_vertex_set_graph.h>

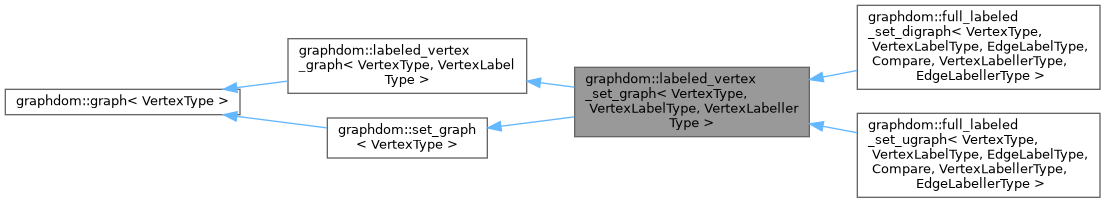

Inheritance diagram for graphdom::labeled_vertex_set_graph< VertexType, VertexLabelType, VertexLabellerType >:

[legend]

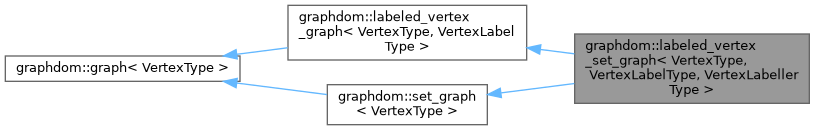

Collaboration diagram for graphdom::labeled_vertex_set_graph< VertexType, VertexLabelType, VertexLabellerType >:

[legend]

Public Member Functions
	labeled_vertex_set_graph (const VertexLabellerType &)
	labeled_vertex_set_graph (VertexLabellerType &&)
	~labeled_vertex_set_graph () override=default
	To be polymorphic, this class has a virtual destructor.
constexpr const VertexLabellerType &	get_vertices_labeller () const
std::pair< typename graph< VertexType >::vertex_handle, bool >	insert_vertex (const VertexType &v_core) final
std::pair< typename graph< VertexType >::vertex_handle, bool >	insert_vertex (VertexType &&v_core) final
virtual std::pair< typename graph< VertexType >::vertex_handle, bool >	insert_vertex (const VertexType &v_core, const VertexLabelType &vertex_label)=0
virtual std::pair< typename graph< VertexType >::vertex_handle, bool >	insert_vertex (const VertexType &v_core, VertexLabelType &&vertex_label)=0
virtual std::pair< typename graph< VertexType >::vertex_handle, bool >	insert_vertex (VertexType &&v_core, const VertexLabelType &vertex_label)=0
virtual std::pair< typename graph< VertexType >::vertex_handle, bool >	insert_vertex (VertexType &&v_core, VertexLabelType &&vertex_label)=0
Public Member Functions inherited from graphdom::labeled_vertex_graph< VertexType, VertexLabelType >
	~labeled_vertex_graph () override=default
	To be polymorphic, this class has a virtual destructor.
virtual const VertexLabelType &	get_vertex_label (const typename graph< VertexType >::vertex_const_handle &vertex) const =0
virtual VertexLabelType &	get_vertex_label (const typename graph< VertexType >::vertex_const_handle &vertex)=0
Public Member Functions inherited from graphdom::graph< VertexType >
virtual	~graph ()=default
	To be polymorphic, this class has a virtual destructor.
virtual std::size_t	order () const =0
	Returns the order of *this, i.e. the number of vertices inside the graph.
virtual void	erase_vertex (const vertex_const_handle &vertex)=0
	Removes the vertex identified by `vertex`.
virtual adj_list_iterator	erase_edge (const adj_list_const_iterator &)=0
Public Member Functions inherited from graphdom::set_graph< VertexType >
	~set_graph () override=default
	To be polymorphic, this class has a virtual destructor.

Detailed Description

template<typename VertexType, typename VertexLabelType, typename VertexLabellerType = default_vertex_labeller<VertexType,VertexLabelType>>
class graphdom::labeled_vertex_set_graph< VertexType, VertexLabelType, VertexLabellerType >

Every labeled-vertex set graph created using this library is an instance of a concrete class publicly derived, directly or indirectly, from this polymorphic template class.

Creating an object of a user-defined class derived, directly or indirectly, from this one will cause undefined behavior.

Member Function Documentation

◆ insert_vertex() [1/6]

template<typename VertexType, typename VertexLabelType, typename VertexLabellerType>

std::pair< typename graphdom::graph< VertexType >::vertex_handle, bool > graphdom::labeled_vertex_set_graph< VertexType, VertexLabelType, VertexLabellerType >::insert_vertex ( const VertexType & v_core )

nodiscardfinalvirtual

Inserts in *this a vertex having v_core as core, if *this doesn't already contain a vertex with an equivalent core.
If and as soon as the insertion took place, the label of the inserted vertex is equal to ( this->get_vertices_labeller() )()

Parameters

v_core

Returns: A pair consisting of a valid handle of the inserted vertex (or the vertex that prevented the insertion) and a bool value set to true if and only if the insertion took place.

Implements graphdom::set_graph< VertexType >.

◆ insert_vertex() [2/6]

template<typename VertexType, typename VertexLabelType, typename VertexLabellerType = default_vertex_labeller<VertexType,VertexLabelType>>

virtual std::pair< typename graph< VertexType >::vertex_handle, bool > graphdom::labeled_vertex_set_graph< VertexType, VertexLabelType, VertexLabellerType >::insert_vertex	(	const VertexType &	v_core,
		const VertexLabelType &	vertex_label )

nodiscardpure virtual

Inserts in *this a vertex having v_core as core, if *this doesn't already contain a vertex with an equivalent core.
If and as soon as the insertion took place, the label of the inserted vertex is equal to vertex_label .

Parameters

v_core
vertex_label	If and as soon as the insertion took place, the label of the inserted vertex is equal to `vertex_label` .

Returns: A pair consisting of a valid handle of the inserted vertex (or the vertex that prevented the insertion) and a bool value set to true if and only if the insertion took place.

Implemented in graphdom::full_labeled_set_digraph< VertexType, VertexLabelType, EdgeLabelType, Compare, VertexLabellerType, EdgeLabellerType >, and graphdom::full_labeled_set_ugraph< VertexType, VertexLabelType, EdgeLabelType, Compare, VertexLabellerType, EdgeLabellerType >.

◆ insert_vertex() [3/6]

template<typename VertexType, typename VertexLabelType, typename VertexLabellerType = default_vertex_labeller<VertexType,VertexLabelType>>

virtual std::pair< typename graph< VertexType >::vertex_handle, bool > graphdom::labeled_vertex_set_graph< VertexType, VertexLabelType, VertexLabellerType >::insert_vertex	(	const VertexType &	v_core,
		VertexLabelType &&	vertex_label )

nodiscardpure virtual

Inserts in *this a vertex having v_core as core, if *this doesn't already contain a vertex with an equivalent core.
If and as soon as the insertion took place, the label of the inserted vertex is equal to vertex_label .
If the insertion did not take place, vertex_label remains unchanged.

Parameters

v_core
vertex_label	If and as soon as the insertion took place, the label of the inserted vertex is equal to `vertex_label` .

Returns: A pair consisting of a valid handle of the inserted vertex (or the vertex that prevented the insertion) and a bool value set to true if and only if the insertion took place.

Implemented in graphdom::full_labeled_set_digraph< VertexType, VertexLabelType, EdgeLabelType, Compare, VertexLabellerType, EdgeLabellerType >, and graphdom::full_labeled_set_ugraph< VertexType, VertexLabelType, EdgeLabelType, Compare, VertexLabellerType, EdgeLabellerType >.

◆ insert_vertex() [4/6]

template<typename VertexType, typename VertexLabelType, typename VertexLabellerType>

std::pair< typename graphdom::graph< VertexType >::vertex_handle, bool > graphdom::labeled_vertex_set_graph< VertexType, VertexLabelType, VertexLabellerType >::insert_vertex ( VertexType && v_core )

nodiscardfinalvirtual

Inserts in *this a vertex having v_core as core, if *this doesn't already contain a vertex with an equivalent core.
If and as soon as the insertion took place, the label of the inserted vertex is equal to ( this->get_vertices_labeller() )()
If the insertion did not take place, v_core remains unchanged.

Parameters

v_core

Returns: A pair consisting of a valid handle of the inserted vertex (or the vertex that prevented the insertion) and a bool value set to true if and only if the insertion took place.

Implements graphdom::set_graph< VertexType >.

◆ insert_vertex() [5/6]

template<typename VertexType, typename VertexLabelType, typename VertexLabellerType = default_vertex_labeller<VertexType,VertexLabelType>>

virtual std::pair< typename graph< VertexType >::vertex_handle, bool > graphdom::labeled_vertex_set_graph< VertexType, VertexLabelType, VertexLabellerType >::insert_vertex	(	VertexType &&	v_core,
		const VertexLabelType &	vertex_label )

nodiscardpure virtual

Inserts in *this a vertex having v_core as core, if *this doesn't already contain a vertex with an equivalent core.
If and as soon as the insertion took place, the label of the inserted vertex is equal to vertex_label .
If the insertion did not take place, v_core remains unchanged.

Parameters

v_core
vertex_label	If and as soon as the insertion took place, the label of the inserted vertex is equal to `vertex_label` .

Returns: A pair consisting of a valid handle of the inserted vertex (or the vertex that prevented the insertion) and a bool value set to true if and only if the insertion took place.

Implemented in graphdom::full_labeled_set_digraph< VertexType, VertexLabelType, EdgeLabelType, Compare, VertexLabellerType, EdgeLabellerType >, and graphdom::full_labeled_set_ugraph< VertexType, VertexLabelType, EdgeLabelType, Compare, VertexLabellerType, EdgeLabellerType >.

◆ insert_vertex() [6/6]

template<typename VertexType, typename VertexLabelType, typename VertexLabellerType = default_vertex_labeller<VertexType,VertexLabelType>>

virtual std::pair< typename graph< VertexType >::vertex_handle, bool > graphdom::labeled_vertex_set_graph< VertexType, VertexLabelType, VertexLabellerType >::insert_vertex	(	VertexType &&	v_core,
		VertexLabelType &&	vertex_label )

nodiscardpure virtual

Inserts in *this a vertex having v_core as core, if *this doesn't already contain a vertex with an equivalent core.
If and as soon as the insertion took place, the label of the inserted vertex is equal to vertex_label .
If the insertion did not take place, v_core and vertex_label remain unchanged

Parameters

v_core
vertex_label	If and as soon as the insertion took place, the label of the inserted vertex is equal to `vertex_label` .

Returns: A pair consisting of a valid handle of the inserted vertex (or the vertex that prevented the insertion) and a bool value set to true if and only if the insertion took place.

Implemented in graphdom::full_labeled_set_digraph< VertexType, VertexLabelType, EdgeLabelType, Compare, VertexLabellerType, EdgeLabellerType >, and graphdom::full_labeled_set_ugraph< VertexType, VertexLabelType, EdgeLabelType, Compare, VertexLabellerType, EdgeLabellerType >.

The documentation for this class was generated from the following files:

include/graphdom/labeled_vertex_set_graph.h
include/graphdom/impl/labeled_vertex_set_graph.h
